Thermal Imaging Cores TC790

Código do item: TC790 640×488 pixels

Categoria: Núcleo de imagem térmica - Núcleo do obturador-menos

+86 (0)571 8720 9887 +86 (0)571 8512 5358 evaxaiohz

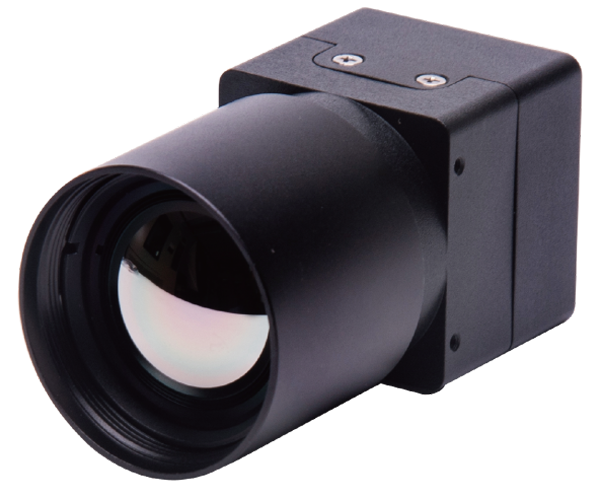

TC490|TC790 are the latest generation of shutterless thermal imaging camera cores, featuring the smallest size, lightest weight, ultimate IR resolution and lowest power consumption on the market. They can be used in any integrations that have most demanding requirements.

Principais Características

◆ Compact design and tiny size, 28mmx28mm(w/o lens), ultra-light weight 32g
◆ Energy-saving design, lowest power consumption(less than0.65W/0.85W)
◆ Shutterless and IVE(Intelligent View Enhancement)technologies ensure fine image
◆ Isolated metal frame for radiating
◆ Multi-lens for option, digital zoom up to 4X

Detector Data

Material aSi
IR resolution 640 × 480
Pixel pitch 17μm
Spectral range 7.5~14μm
NETD/Sensitivity 60mK

Lens Data

Lens(Optional) 9mm/13mm,/19mm,/25mm athermal lens

Image Performance

NUC Shutterless technology
Image enhancement IVE image enhancement algorithm
Frequency 50Hz/60Hz
Zoom 2x、4x
Polarity/LUT mode Black hot/White hot
Startup time 3s
Image gain Auto/Manual
Cross cursor ON/OFF


Primary electrical connector 40pin
Control port RS232
Analog video output BNC(75Ω); CCIR/PAL
Digital video output 16-Bit original data, 8-Bit BT656(customizable)
Keypad 5 button keyboard

Power System

Working voltage DC: +2.5V~+5.5V(standard: 3.7V)
Power consumption 0.85W (BT656<1.3W)
Reverse polarity protection Yes
Over voltage protection Yes

Environmental Parameters

Operating temperature range -40 ℃~+60℃
Storage temperature range -50 ℃~+70℃
Humidity 5%~95% (non-condense)
Shock GJB150-16 2.3.1, 100g: 6msec
Vibration GJB150-16 2.3.1, 4.3g 3 axises, 8h

Physical Data

Size 28mm×28mm×26.2mm
Weight ≤32g(without lens)
Mounting M2×0.4


Standard Thermal imaging core, integrated cable, user manual of CD, warranty card, calibration certificate, button keyboard
