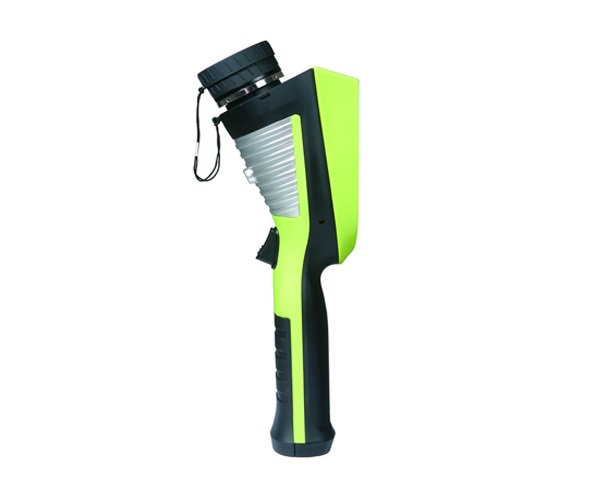

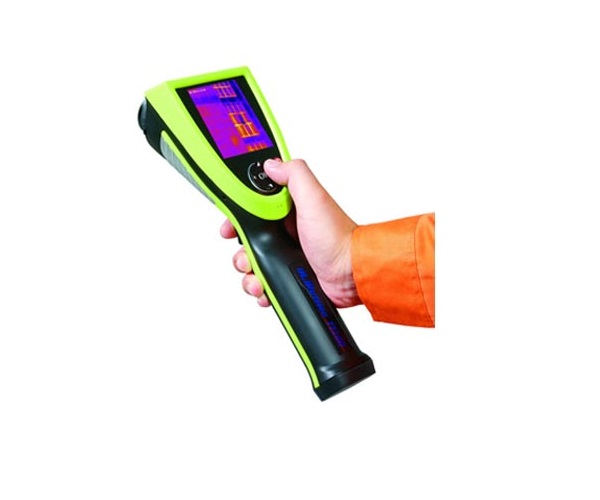

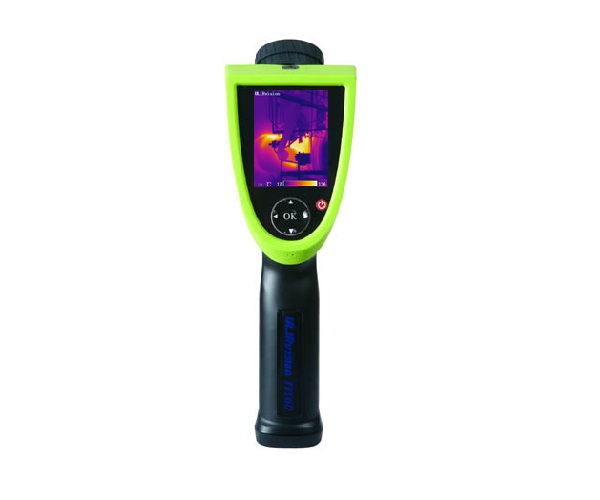

Câmara de imagem térmica de TI160

Código do item: TI160 160 x 120 pixels

Categoria: Câmaras de imagens térmicas - Elétrica e Industrial

+86 (0)571 8720 9887 +86 (0)571 8512 5358 overseas@ulirvision.com evaxaiohz

ULIRVISION TI160 & TI384 are affordable thermal cameras in the market, with 50Hz frame rate, multi functions and wide temperature measurement range. They provide ultimate inspection tools and unprecedented easy-to-use designs to fit your needs.

Principais Características

◆ 3.5” TFT LCD
◆ Built-in microphone to record 40sec voice annotation
◆ Multiple lenses for option
◆ Automatic Hot/Cold/Average spot recognition
◆ Intuitive and easy operation menu

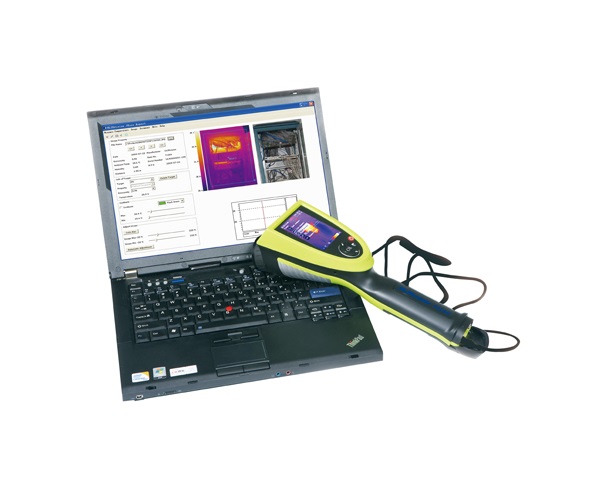

◆ Multifunction PC analysis software IRSee

Detector Data

Type Uncooled FPA
IR resolution 160×120
Pixel pitch 25μm
Spectral range 7.5~14μm
NETD/Sensitivity 65mK

Lens

FOV/Minimum imaging distance 21°×16°/15cm
IFOV 2.3mrad
Focus Manual
Lens(Optional) 35°×27°/5cm、4°×3°/80cm

Image Performance

Display 3.5” color LCD, 320×240 pixels
Frequency 50Hz/60Hz
Zoom 2X
Color palletes 12 palletes(including iron, rainbow, white hot and black hot etc.)
Contrast/brightness Auto/Manual

Measurement

Temperature range -20℃~+350℃、-20℃~+600℃(can be extended to 1200℃)
Measurement accuracy ±2℃/±2%(reading)
Spotmeter 4 adjustable spots
Line profile Vertical/Horizontal
Area 3 adjustable boxes with max./min./avg temperature value
Isotherms analysis Capture high/low temperature/interval
Alarm Voice, color
Measurement correction Auto/Manual
Emissivity correction Adjustable from 0.01 to 1.0 or selected from list of materials
Background temperature correction Auto
Atmospheric transmissivity correction Auto
Setting function Date/time, temperature unit ℃/℉/K, language

Image Storage

Storage type Built-in flash card, 800 images
Storage mode Store signal frame image auto/manual
Voice annotation 40s voice record, stored with per image via built-in microphone

Laser Point

Grade/Type Class 2, 1mW/635nm Red

Interfaces

Power Yes
Video output CVBS
Audio output Yes
USB USE2.0, radiometric images、measurement data and voice are transfered to PC
Tripod 1/4” -20

Power System

Battery type Rechargeable li-ion battery
Battery operation time 3hours
DC supply DC: 12V ±5%
Charging system In camera or intelligent charger
Power saving Yes

Environment Parameters

Operation temperature range -20℃~+50℃
Storage temperature range -40℃~+70℃
Humidity ≤95%(Non-condense)
Vibration 2G(IEC60068-2-6)
Shock 25G(IEC60068-2-29)
Encapsulation IP54(IEC60529)

Physical Data

Size(L×W×H) 330mm×95mm×86mm
Weight ≤0.65kg(with battery and standard lens)

Packing

Standard Thermal imaging camera with standard IR lens, 2 Li-ion batteries, battery charger, adapter, USB cable, SD card, card reader, software CD, warranty card, certificate, calibration book
Optional accessories Laptop, SLR camera

Indústria da Construção

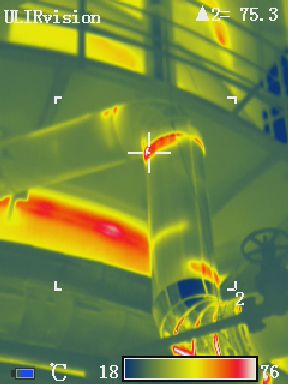

Indústria de Petróleo e Químicos

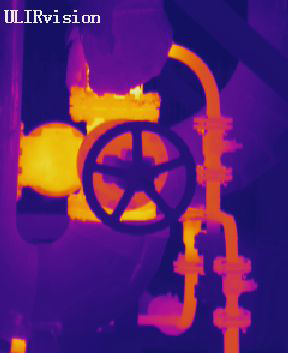

Indústria de Ferro

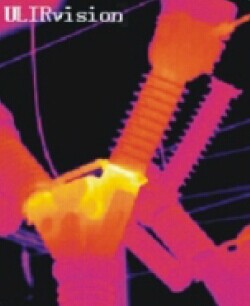

Indústria de Energia
