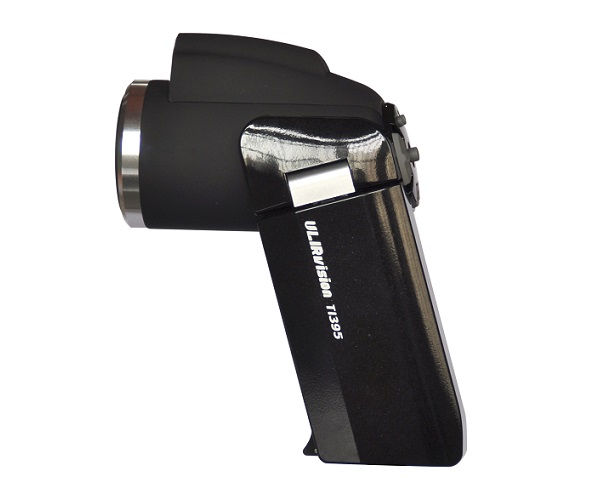

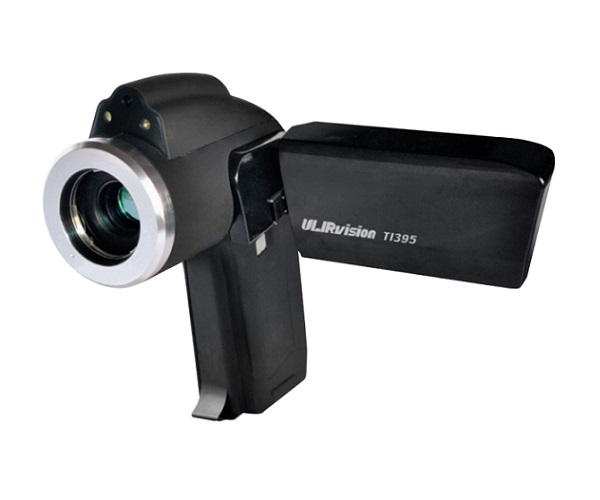

Câmara de imagem térmica de TI395

Código do item: TI395 384 x 288 pixels

Categoria: Câmaras de imagens térmicas - Elétrica e Industrial

+86 (0)571 8720 9887 +86 (0)571 8512 5358 overseas@ulirvision.com evaxaiohz

TI175|TI395 are affordable, easy-to-operate and high-performance thermal imaging cameras that offer accurate temperature measurements at safe distances. They have a wide range of temperature measurements to satisfy a variety of thermograph applications. They are widely used in electricity and industry applications.

Principais Características

◆ Excellent thermal image and high accuracy temperature measurement
◆ 3.2”,270°rotatable and foldable LCD
◆ Multi-mode for temp. measurement, max./min./avg temp, auto tracking, isotherms analysis
◆ Tiny size, light weight 400g
◆ Multi-lens for option
◆ Fusion and overlay of the thermal image & visible image

Detector Data
Type
Uncooled FPA
IR resolution
384×288
Pixel pitch
17μm
Spectral range
7.514μm
NETD/Sensitivity
70mK
Lens
FOV/Minimum imaging distance
24°×18°/30cm
IFOV
1.2mrad
Focus
Auto/Motor

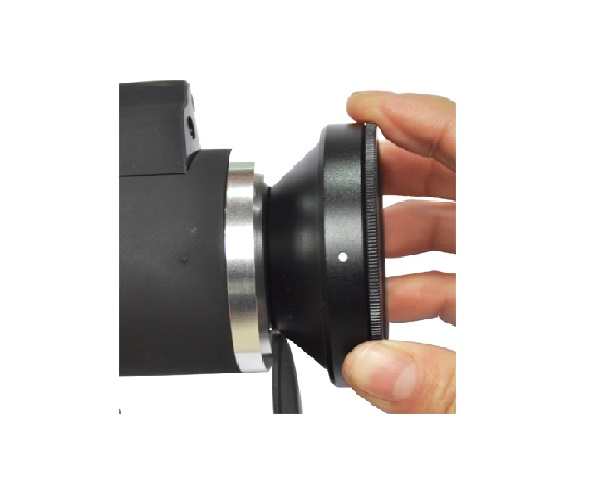

Lens(Optional)
45°×34°/15cm12°×9°/1m
Image Performance
Display
3.2”,270° tiltable LCD,800×480 pixels
Visual camera
3.0 mega pixel
Frequency
50Hz/60Hz
Zoom
1X8X continuous
Color palettes
12 palettes(including iron, rainbow, white hot and black hot etc.)
Contrast/brightness
Auto/Manual
Measurement
Temperature range
-20℃+100℃-20℃+600℃
Measurement accuracy
±2℃/±2%(reading)
Spotmeter
4 adjustable spots
Line profile
Vertical/Horizontal
Area
3 adjustable boxes with max./min./avg temperature value
Isotherms analysis
Capture high/low temperature/interval
Alarm
Voice, color
Measurement correction
Auto/Manual
Emissivity correction
Adjustable from 0.01 to 1.0 or selected from list of materials
Background temperature correction
Auto
Atmospheric transmissivity correction
Auto
Setting function
Date/time, temperature unit ℃/℉/K, language
Languages
10 languages(English, French, Italian, German, Spanish, Portuguese, Russian, Korean, Japanese, Simplified Chinese & Traditional Chinese)
Image Storage
Storage type
Built-in flash card, up to >500 images
8G SD card, up to >8000 images
Storage mode
Auto/Manual store image in frame
Signal frame infrared image format
JPEG, with 14-Bit radiometric image
Signal frame visible light image format
JPEG or stored with thermal image
Voice annotation
40s voice record, stored with per image via built-in microphone
Periodic image storage
User defined, 7s at least
Laser Point
Grade/Type
Class 2,1mW/635nmRed
Interfaces
Power interface
Yes
SD card slot
Yes
Video output
CVBS
Audio output
Yes
USB
USE2.0, radiometric imagesmeasurement data and voice are transferred to PC
Tripod
1/4” -20
Power System
Battery type
Lithium battery
Battery operation time
3h continuous
External power
DC: 5V±5%
Charging system
Intelligent charger or in camera
Power saving
Yes
Environment Parameters
Operating temperature range
-20℃+50℃
Storage temperature range
-40℃+70℃
Humidity
≤95%(Non-condense)
Vibration
2G(IEC60068-2-6)
Shock
25G(IEC60068-2-29)
Encapsulation
IP54(IEC60529)
Physical Data
Size
128mm×62mm×154mm
Weight
≤0.4kg(with battery and standard lens)
Packing
Standard
Thermal imaging camera with standard IR lens, 2 Li-ion batteries, battery charger, adapter, USB cable, SD card, card reader, software CD, warranty card, calibration certificate
Option
Laptop, SLR camera
Please note that product specifications are subject to change without notice. To acquire more accurate information, please feel free to contact us.

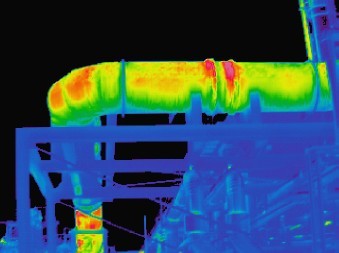

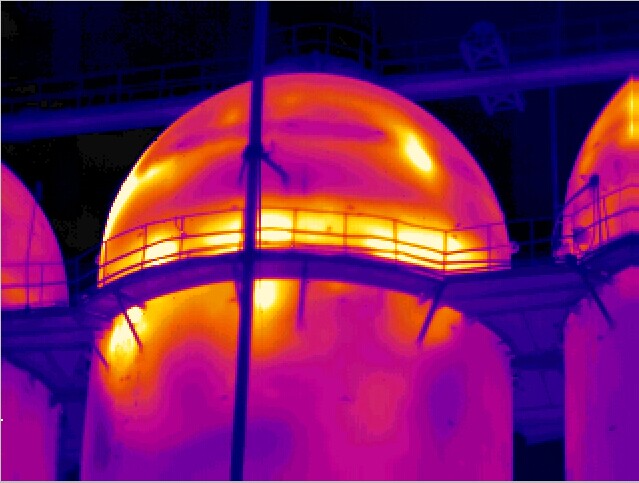

Indústria de Petróleo e Químicos
