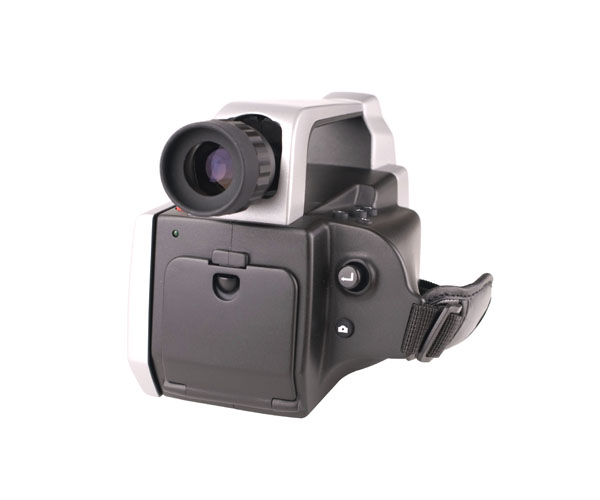

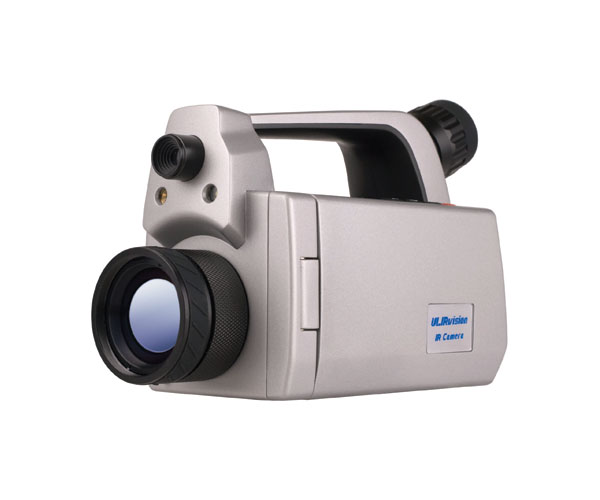

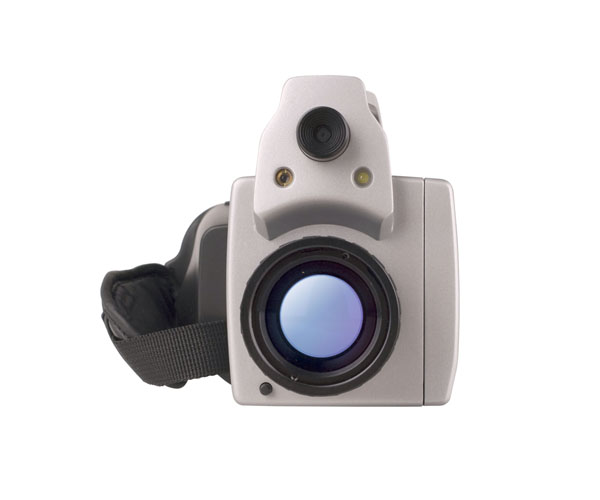

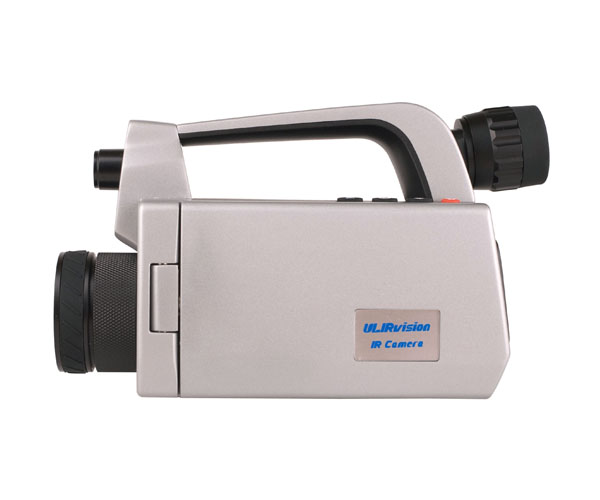

Câmara de imagem térmica de TI400

Código do item: TI400 384 x 288 pixels

Categoria: Câmaras de imagens térmicas - Elétrica e Industrial

+86 (0)571 8720 9887 +86 (0)571 8512 5358 overseas@ulirvision.com evaxaiohz

ULIRVISION TI400|TI600 are with ergonomic design, high performance with 5MP visual camera, interchangeable lens, large 5” foldable and rotatable LCD, manual & auto focus. It can provide powerful assistance for thermographers to have the most efficient instrument for maintenance inspections. TI400|TI600 have a wide range temperature measurement to satisfy variety of thermograph applications and they enable you to identify the small temperature difference that could cause big problems.

Principais Características

◆ Folding and 270° rotatable display
◆ Auto/Motor focus for one-hand operation
◆ Bright LED light, laser pointer
◆ Built-in digital camera, 5.0M resolutions
◆ Real-time thermal video transfer to PC via USB, and remote transfer via MSN and Skype

Item

TI400



Detector Data

Type Uncooled FPA
IR resolution 384×288
Pixel pitch 17μm
Spectral range 7.5~14μm
NETD/Sensitivity 65mK

Lens

FOV/Minimum imaging distance 24°×18°
Minimum imaging distance 1m
IFOV 1.2mrad
Focus Auto/Motor/Manual
Lens(optional) 47°×35°/0.5m、12°×9°/1m、6.3°×4.7°/4m

Image Performance

Display 5”, 270° tiltable LCD, 800×480 pixels
Visual camera 5.0 mega pixel
Frequency 50Hz/60Hz
Zoom 1X~8X continuous
Color palletes 12 palletes(including iron, rainbow, white hot and black hot etc.)
Contrast/brightness Auto/Manual

Measurement

Temperature range -20℃~+600℃(can be extended to 1200℃)
Temperature accuracy ±2℃/±2%(reading)
Spotmeter 10 adjustable spots
Line profile Vertical/Horizontal
Area 5 adjustable boxes with max./min./avg temperature value
Isotherms analysis Capture high/low temperature/interval
Alarm Voice, color
Dew point alarm Yes
Measurement correction Auto/Manual
Emissivity correction Adjustable from 0.01 to 1.0 or selected from list of materials
Background temperature correction Auto
Atmospheric transmissivity correction Auto
Setting function Date/time, temperature unit ℃/℉/K, language
Video Can be recorded and saved

Image Storage

Storage type Built-in flash card, >2800 images
16G SD card, >32000images
Storage mode Store signal frame image auto/manual
Signal frame infrared image format JPEG, with 14-Bit measured data image
Signal frame visible light image format JPEG or stored with signal frame image
Voice annotation 60s voice record, stored with per image via built-in microphone

Laser Point

Grade/Type Class 2, 1mW/635nm Red

Interfaces

Power interface Yes
SD card slot Yes
Video output CVBS
Audio output Yes
USB Radiometric images transfer to and from PC
Tripod 1/4” -20

Power System

Battery type Lithium battery
Battery operation time 3h continuous
External power DC: 10V~15V
Charging system Intelligent charger or in camera(AC adapter or 12V car charger)
Power saving Yes

Environment Parameters

Operation temperature range -20℃~+50℃
Storage temperature range -40℃~+70℃
Humidity ≤95%(Non-condense)
Shock 2G(IEC60068-2-6)
Vibration 25G(IEC60068-2-29)
Encapsulation IP54(IEC60529)

Physical Data

Size 215mm×145mm×135mm
Weight ≤1.6kg(with battery and standard lens)

Packing

Standard Thermal imaging camera with standard lens, 2 lithium batteries, battery charger, adapter, USB cable, SD card, card reader, software CD, warranty card, calibration certificate
Option Laptop, SLR camera
