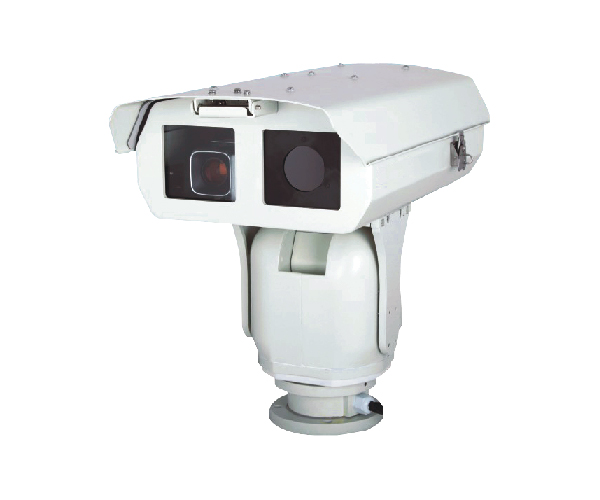

Monitoramento On-line Sistema de imagem térmica de TI3000
Código do item: TI3000 384 x 288 pixels
Categoria: Sistemas de monitoramento de segurança térmica - Monitoramento On-line Sistema de imagem térmica
ULIRVISION TI3000|TI6000 can provide temperature monitoring and security monitoring for electrical equipments, machinery, flammable materials and important facilities on a 24/7 basis, 365 days a year. They can find accident potentials in the first time and give auto alarms to ensure the company’s safe production.
Principais Características◆ Visual light & thermal imaging dual-channel real-time monitoring
◆ Monitoring in zero illuminance, smog and spray
◆ System front-end temperature measurement technology, quick and accurate temperature measurement
◆ 1 optical fiber to complete all controls and data transmission
◆ Auto cruise, auto alarm and report auto generating
Detector Data |
||
Type | Uncooled FPA | |
Pixels | 384×288 | |
Pixel pitch | 17μm | |
Spectral range | 7.5~14μm | |
NETD | 65mK 40mK | |
Lens Data |
||
FOV/Minimum imaging distance | 24°×18°/40cm | |
IFOV | 1.3mrad | |
Focus | Auto/Manual | |
Lens(Optional) | 15mm, 25mm, 35mm, 50mm, 75mm motorized or athermal lens | |
CCD Camera |
||
Resolution | 1920×1080 | |
Min. Illumination | Color: 0.01 Lux@(F1.2, AGC ON) B/W: 0.001 Lux@(F1.2, AGC ON) | |
Zoom | 12x(Digital)、36x(Optical) | |
Pan & Tilt |
||
Horizontal rotation angle | 0° ~360° continuous rotation | |
Presets | Supporting 255 | |
Vertical angle | Max: -75 ~+40° | |
Measurement |
||
Temperature range | Standard: -20 ℃~+350 ℃ Optional: -20℃~+1200℃ | |
Accuracy | ±2℃ or ±2% of reading | |
Mode | Software settings | |
Correction | Auto/Manual | |
Image Storage |
||
Original image capture | Back-end manual capturing single frame, data image captured can be analysed & temperature-measured |
|
Image storage | H.264 real-time continuous image recording Single image storage, BMP format | |
Power System |
||
External power | AC: 220 | |
Power consumption | ≤75W (@25 ℃ normal operation ) | |
Environmental Data |
||
Operation temp range | -40 ℃~+60℃ | |
Humidity | ≤95% (non-condense) | |
Encapsulation | IP66 | |
Software |
||
Running environment | Windows platform | |
Customized content | Cruise route, cruise time, cruise times | |
Operation mode | Auto/Manual | |
Report mode | Supporting Word/PDF output | |
Monitoring type | Remote monitoring (temperature can be overlayed) | |
Query & Records | Recording alarms & abnormal thermal images, providing historical inquiry | |
Hardware configuration |
||
CPU | ≥P3 | |
Memory | RAM: ≥512M | |
HD Space | ≥20G | |
Monitor resolution | Monitor resolution: 1440×900, 256colors, installed with CD-ROM | |
Internet |
||
Type | 100Mbps | |
Internet Low Bandwidth | Supporting low-bandwidth operation mode, covering not more than 0.8M bandwidth when transmitting temperature data & image data simultaneously | |
Standard | IEEE802.3 | |
Connector | RJ-45 | |
General Protocols Supporting | IEC60870-5-104、IEC61850 | |
False Alarm Prevention Identification System | System's auto elimination for the surrounding thermal sources interference | |
Service | Immediate feedback, 24-hr online service |
