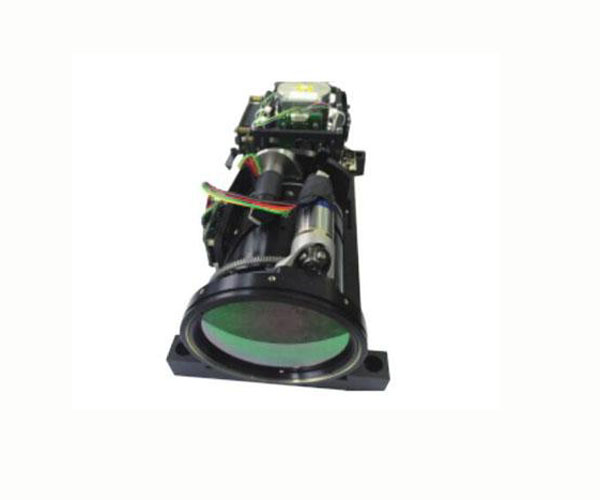

Mid-wave Cooled Thermal Imaging Cores TC640MW

Código do item: TC640MW

Categoria: Núcleo de imagem térmica - Núcleo arrefecida

+86 (0)571 8720 9887 +86 (0)571 8512 5358 overseas@ulirvision.com evaxaiohz

TC320MW|TC640MW are mid-wave cooled thermal imaging cores with SOFRADIR detectors which can be easily integrated into infrared systems that require extremely long distance detection and adaption to any harsh environment.

Principais Características

◆ Cooled HgCdTe detector
◆ Continuous optical zooming, triple view, multiple lenses are optional
◆ Formidable image processing ability
◆ Multiple interfaces, easy integration
◆ Compact design, high level of integration



Detector Data

Type MCT
IR resolution 640×512
Pixel pitch 15μm
Spectral range 3~5μm
NETD/Sensitivity 18mK

Lens Data

FOV 1.7°×1.4°~36.5°×29.2°
Focal distance 15mm~330mm continuous zoom lens
F/# F2/F4
Lens(Optional) 50/250mm duel FOV lens, 25/80/320 triple FOV lens, 15mm~250mm continuous zoom lens, 21mm~420mm continuous zoom lens, 30mm~660mm continuous zoom lens

Image Performance

Correcting Manual correction, background correction
Image enhancement Auto image Filtering, DDE
Image mirroring Vertical, horizontal
Frequency 100Hz
Zoom 2x、4x
Polarity/LUT mode Black hot/White hot
Cross display Yes


Control port RS232/RS422
Analog video output PAL
Digital video output CameraLink

Power System

Working voltage DC: +24V~+32V
Power consumption <12W@25℃(standard)
Cooling time ≤8min

Environmental Parameters

Operating temperature range -40 ℃~+60℃
Storage temperature range -40 ℃~+70℃
Humidity 5%~95% (non-condense)
Shock 20g shock pulse with 6ms half sine
Vibration 1.5g 5-200Hz sine

Physical Data

Size 160mm×92mm×86mm(without lens)
Weight ≤2.47kg(with 330mm lens)
