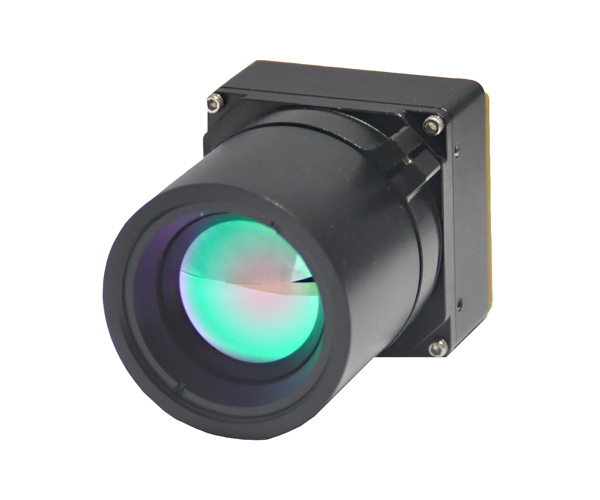

Núcleo de imagem térmica do TC690

Código do item: TC690 640 x 480 pixels

Categoria: Núcleo de imagem térmica - Núcleo do obturador-menos

+86 (0)571 8720 9887 +86 (0)571 8512 5358 overseas@ulirvision.com evaxaiohz

TC390|TC690 are high level shutterless thermal imaging camera cores which can be used for various applications such as UAV&Robot integration, defense&surveillance system integration, thermal night vision and so on.

Principais Características

◆ Compact design, 38mmx38mm size, weight 55g
◆ Energy-saving design, lowest power consumption (less than 0.65W)
◆ Shutterless and IVE(Intelligent View Enhancement) technologies
◆ Isolated metal frame for radiating
◆ Digital zoom up to 4X

Detector Data

Material aSi
IR resolution 640×480
Pixel pitch 17μm
Spectral range 7.5~14μm
NETD/Sensitivity 60mK

Lens Data

Lens(Optional) 9mm/13mm/19mm/25mm/35mm/50mm/75mm athermal lenses, various motorized lenses

Image Performance

NUC Shutterless technology
Image enhancement IVE image enhancement algorithm
Frequency 50Hz/60Hz
Zoom 2x、4x
Polarity/LUT mode Black hot/White hot
Startup time 3s
Image gain Auto/Manual
Cross cursor ON/OFF


Primary electrical connector 40pin
Control port RS232
Analog video output BNC(75Ω); CCIR/PAL
Digital video output 16-Bit original data, 8-Bit BT656(customizable)
Keypad 5 button keyboard

Power System

Working voltage DC: +2.5V~+5.5V(standard: 3.7V)
Power consumption 0.85W (BT656<1.3W)
Reverse polarity protection Yes
Over voltage protection Yes

Environmental Parameters

Operating temperature range -40 ℃~+60℃
Storage temperature range -50 ℃~+70℃
Humidity 5%~95% (non-condense)
Shock GJB150-16 2.3.1, 100g: 6msec
Vibration GJB150-16 2.3.1, 4.3g 3 axises, 8h

Physical Data

Size 38mm×38mm×25.1mm
Weight ≤55g(without lens)
Mounting M2×0.4


Standard Thermal imaging core, integrated cable, user manual of CD, warranty card, calibration certificate
