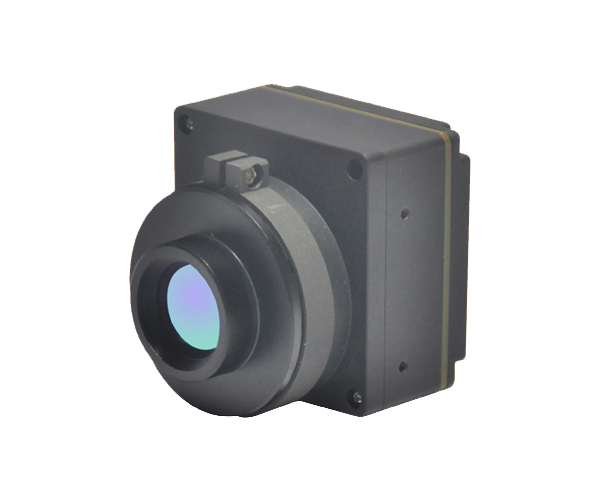

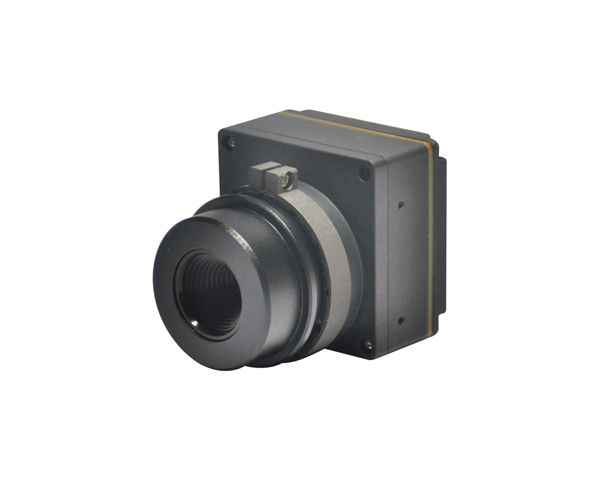

Núcleo de imagem térmica do TC388

Código do item: TC388 384 x 288 pixels

Categoria: Núcleo de imagem térmica - Núcleo do obturador

+86 (0)571 8720 9887 +86 (0)571 8512 5358 overseas@ulirvision.com evaxaiohz

TC388|TC688 are the thermal imaging camera cores with advanced reliable shutter, it can provide stable and high quality thermal images and videos. It can be easily integrated into defense, security and surveillance systems.

Principais Características

◆ 50Hz imaging frequency, 3s for start-up
◆ Ultra-low power consumption(less than 1.2W)
◆ IVE technology
◆ Customizable interfaces
◆ PAL & NTSC switchable analog video output

Detector Data

Material aSi
IR resolution 384×288
Pixel pitch 17μm
Spectral range 7.5~14μm
NETD/Sensitivity 65mK

Lens Data

Lens(Optional) 9mm/13mm/19mm/25mm/35mm/50mm/75mm athermal lens, 100mm/150mm motorized lens, dual FOV lens, continuous zoom lens(optional)

Image Performance

Image enhancement IVE image enhancement algorithm
Frequency 50Hz
Zoom 2x、4x
Polarity/LUT mode Black hot/White hot
Startup time 3s
Image gain Auto/Manual
Focus Motor
Cross cursor ON/OFF
Image frozen Yes

Interface

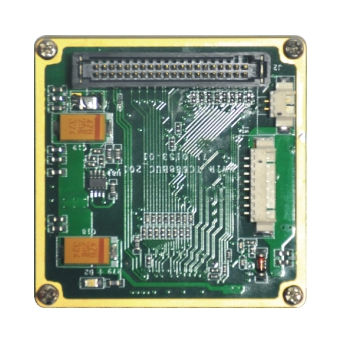

Primary Electrical Connector 40pin
Control port RS232
Analog video output BNC(75Ω); CCIR/PAL
Digital video output 16-Bit original data, 8-Bit BT656(customizable)

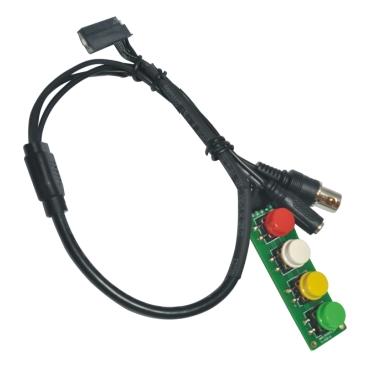

Keypad 4 button keyboard

Power System

Working voltage DC: +4V~+5.5V(Standard: 5V)
Power consumption 1.5W
Reverse polarity protection Yes
Over voltage protection Yes

Environmental Parameters

Operating temperature range -40 ℃~+60℃
Storage temperature range -50 ℃~+70℃
Humidity 5%~95% (non-condense)
Shock GJB150-16 2.3.1, 100g: 6msec
Vibration GJB150-16 2.3.1, 4.3g 3axises, 8h

Physical Data

Size 44.5mm×44.5mm×39.5mm
Weight ≤77g(without lens)
Mounting M2×0.4, 1/4”-20

Packing


Standard Thermal imaging core, integrated cable, user manual of CD, warranty card, calibration certificate
